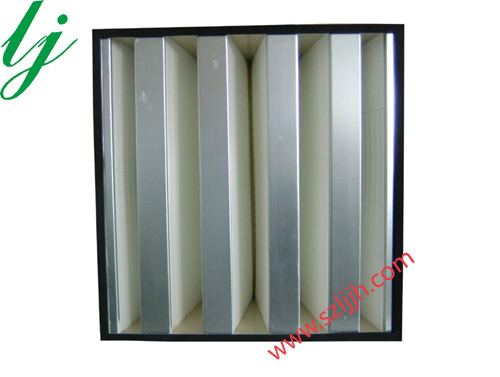

箱式高效空氣過濾器

箱式高效空氣過濾器

Box efficient air filter

特點 Features

●風量大、效率高、容塵量大

●適用于空調機組的終端過濾及各種大風量

空氣凈化設備

●Air, high efficiency, large amount of dust

●Applicable to the terminal filtration and air

conditioning unit of large volume of air

purification equipment

構成材料及運行條件 Materials and operating conditions

●框材：金屬外框或塑膠框                         ●密封物：聚胺脂膠

●External frane：The casing outside the metal box or     ●Sealant：Gel-glue

●分隔物：熱熔膠                                 ●濾料：玻纖濾紙

●Filter media：Hot-melt                            ●Filter media：Glass fiber

●使用最高溫度、濕度：80℃、80%

●Use the highest temperature, humidity：80℃、80%

型號尺寸及其他參數

Standard specification

型號 model	外形尺寸 Outside dimensions (mm)	額定風量 Rated air flow (m3/h)	初阻力 Imitial resistance (Pa)	效率（鈉焰法） Efficiency (%)	濾芯 Filter Media (PCS)
LJ-GXX-16J	305×610×295	1600	≤250或≤150（HV）	≥99.99	4V
LJ-GXX-32J	610×610×295	3200	≤250或≤150（HV）	≥99.99	4V
LJ-GXX-20J	305×610×295	2000	≤250或≤150（HV）	≥99.99	5V
LJ-GXX-40J	610×610×295	4000	≤250或≤150（HV）	≥99.99	5V

*可要據用戶要求定制不同規格型號的過濾器

According to user requirements to customize different specifications and types of filters
